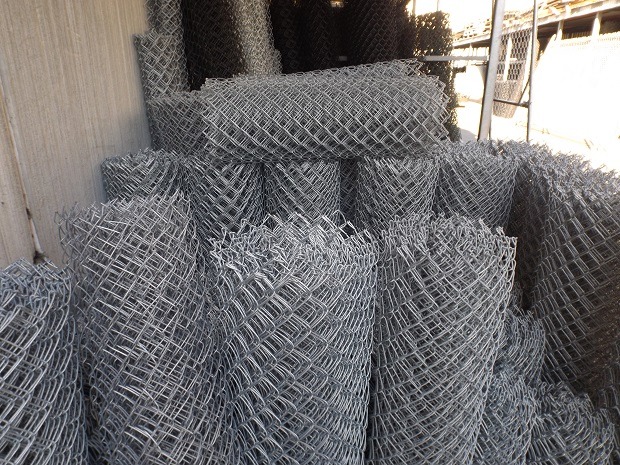

Flexible in both design and function, we offer chain mesh wire fabric to suit your application

Constructed from only the highest quality, incredibly durable heavily galvanised Australian Made steel, our chain wire mesh fabric is designed to withstand high wind and harsh weather. Traditionally used for fencing and security purposes, with the option of PVC coating, chain wire mesh can be easily adapted to suit your site requirements.

PVC Chainmesh wire specification

Normal Wire Diameter Coated Diameter
1.57mm 2.25 – 2.35mm
2.00mm 2.75 – 2.85mm
2.50mm 3.35 – 3.45mm
3.15mm 4.10 – 4.20mm
4.00mm 4.10 – 4.20mm

All products have a tensile range of 350 – 500 MPa.

Galvanised Chainmesh wire specification

Normal Wire Diameter Galvanised DiameterW02Z & W05ZA Galvanised DiameterW10Z
1.57mm +/- 0.04 +/- 0.04
2.00mm +/- 0.06 +/- 0.06
2.24mm +/- 0.06 +/- 0.06
2.44mm +/- 0.06 +/- 0.06
2.50mm +/- 0.06 +/- 0.06
3.15mm +/- 0.07 +/- 0.07
4.00mm +/- 0.07 +/- 0.07

Need More Information?

In addition to chain wire, we also manufacture and supply tubular steel, colorbond and weld mesh materials, as well as bespoke architect designed commercial steel fencing. Contact us today on 03 9768 3777 or [email protected]
